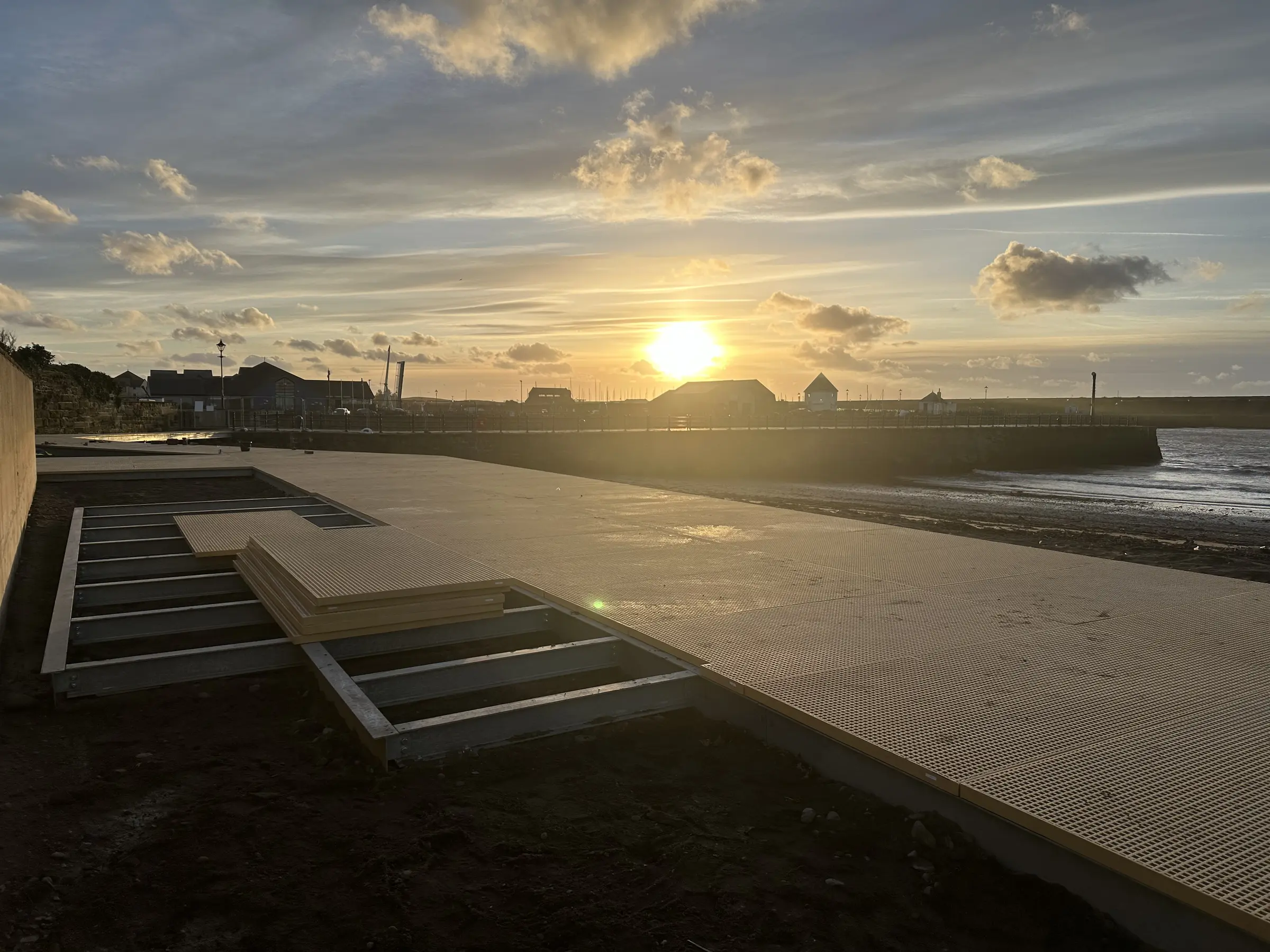

Maryport Boardwalk structure extending across the beach toward the harbour in evening coastal light

Major project · Coastal structures & public realm

Maryport Boardwalk

Principal Contractor delivery of an 80+ metre steel-framed boardwalk across tidal ground at Maryport harbour.

Cowran Estate Services delivered Maryport Boardwalk as Principal Contractor for Cumberland Council, leading the project from mobilisation, procurement and setting out through foundations, steelwork, decking, public-realm interfaces and completion. The route connects the harbour wall across Lal Beach to the promenade, creating an accessible coastal link designed for long-term public use.

The challenge

The structure had to be built through winter on exposed tidal ground while protecting a galvanised steel frame designed for a 40-year service life. Deep screw piles, structural tolerances, off-site fabrication, specialist GRP, locally sourced oak and live public interfaces all had to be coordinated as one construction sequence.

What Cowran managed and delivered

  • Principal Contractor project management, procurement and site establishment
  • Engineering, setting out and beach-head level changes
  • Installation and testing of more than 50 deep screw piles
  • Coordination of off-site steel fabrication and on-site frame installation
  • Procurement and installation of custom non-slip GRP decking
  • Locally sourced oak seating and safety kick rails
  • Concrete ramp, slipway and handrail works
  • Opening, demobilisation and completion records

How delivery was controlled

  • Pile alignment, torque achievement, compression and load testing
  • Accurate pile-to-frame interfaces to avoid on-site drilling and protect galvanised coatings
  • Factory verification of custom GRP tolerances before delivery
  • Winter, tidal and public-interface planning
  • Coordinated off-site manufacture, logistics and on-site installation
  • Recorded inspection, completion and public opening

Delivery outcome

The completed boardwalk provides an accessible route between Maryport's harbour wall, Lal Beach and the promenade. It records Cowran's ability to hold Principal Contractor responsibility across deep foundations, structural coordination, specialist procurement, coastal working conditions and a public-facing finish.

Construction record

How the boardwalk was built.

The project combined deep foundations, protected structural steelwork and specialist public-realm finishes in one exposed coastal construction sequence.

Foundations

Deep screw piles held to line in tidal ground.

More than 50 screw piles formed the boardwalk substructure. Some reached approximately 7.5 metres before the required torque was achieved, with alignment, compression testing and load testing controlled as part of the foundation package.

Structure

Fabrication tolerances protected the finished frame.

The galvanised steelwork was fabricated off site and coordinated closely with the installed piles. Accurate interfaces avoided remedial drilling on site and protected the coating that underpins the structure's durability.

Public realm

Specialist materials resolved for exposed public use.

Custom non-slip GRP decking was checked at the factory before installation. Locally sourced Cumbrian oak seating and kick rails, concrete ramps and reinstated handrails completed the accessible coastal route.

Maryport construction sequence

From tidal ground to completed public route.

Deep foundations, galvanised steelwork, specialist decking and public-realm finishes were coordinated as one coastal construction sequence.

Screw-pile components prepared for the Maryport Boardwalk foundations
Foundations

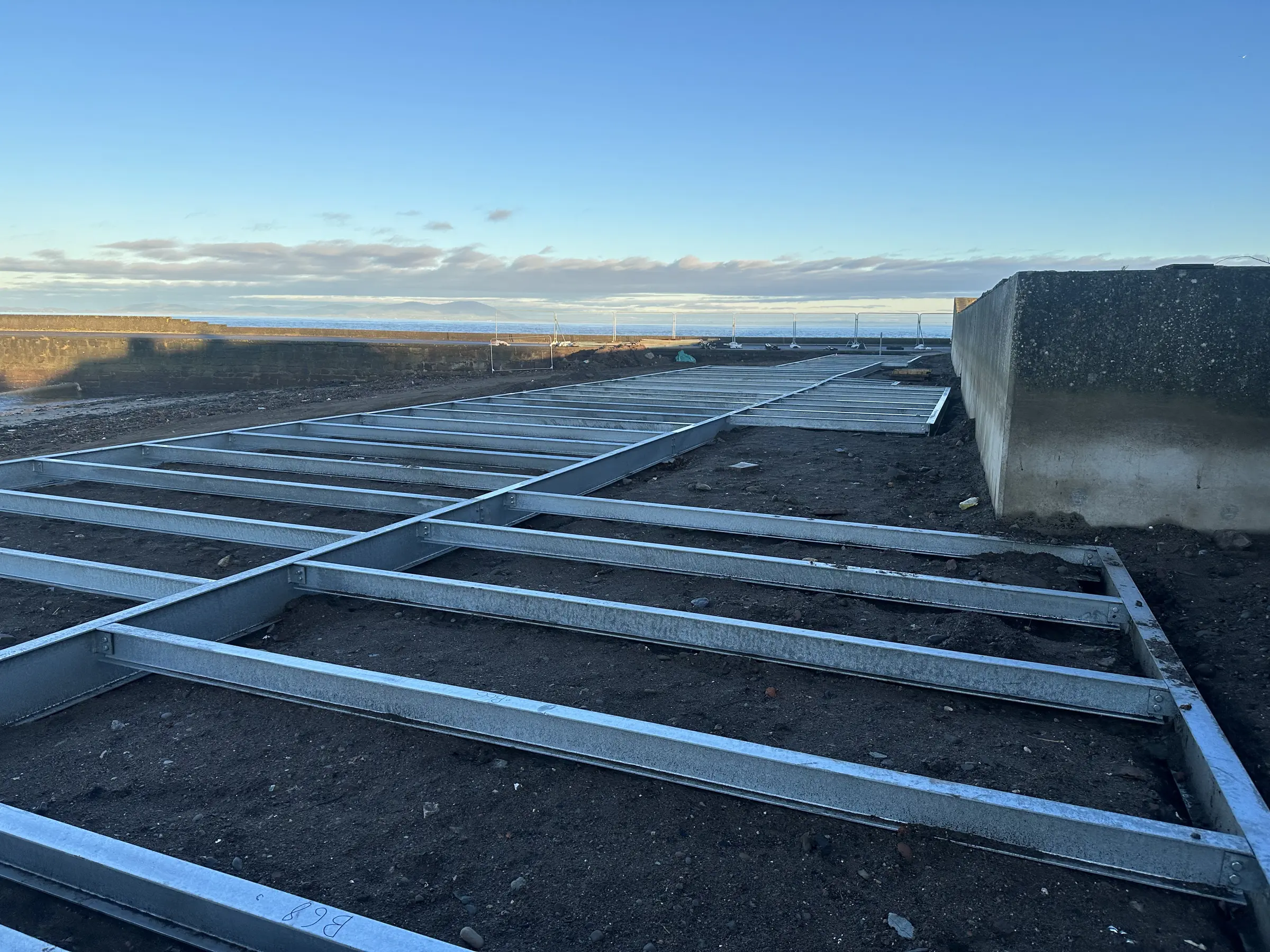

Galvanised structural steel frame installed across the tidal ground at Maryport
Structure
Completed non-slip Maryport Boardwalk deck forming the accessible coastal route
Public route

Complete construction film

Watch the boardwalk take shape.

The complete visual sequence follows the build through its structural stages, explains the deep-foundation solution and closes on the finished coastal route.

1 minute 58 seconds · Original soundtrack · Viewer controlled

Music: “Horizons” by Scott Buckley — released under CC-BY 4.0 · www.scottbuckley.com.au. Edited to fit this film.

Field record

Delivery, seen on the ground.

Selected project photography records the scale, sequencing and coastal conditions behind the technical evidence.

Galvanised steel boardwalk frame installed beside the sea at Maryport
The galvanised frame established the route across the exposed beach while preserving the accuracy needed for the completed deck.

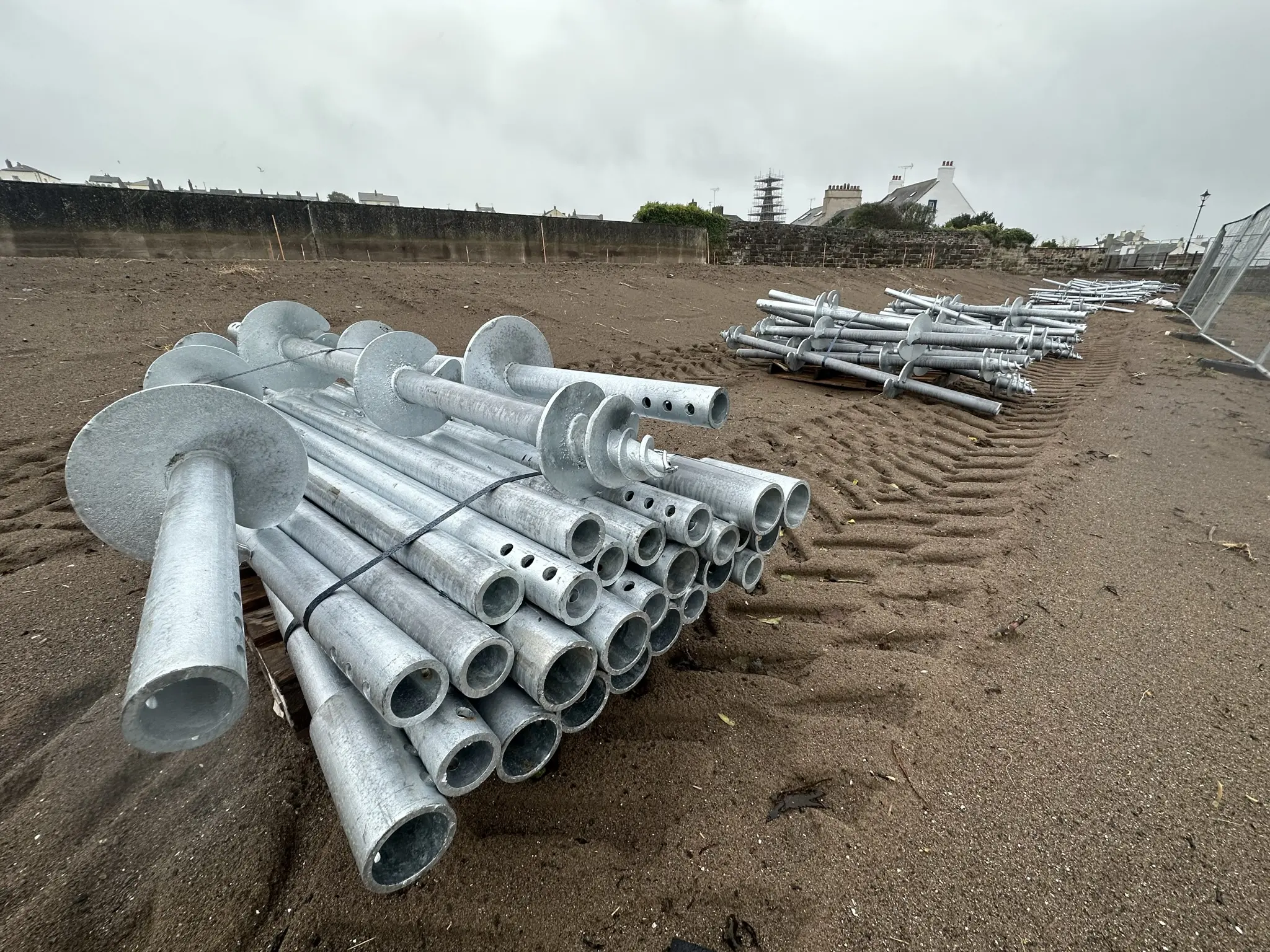

Screw-pile components prepared for the Maryport Boardwalk foundations
More than 50 screw piles formed the deep foundation system, with installation, alignment and testing controlled against the structural requirements.

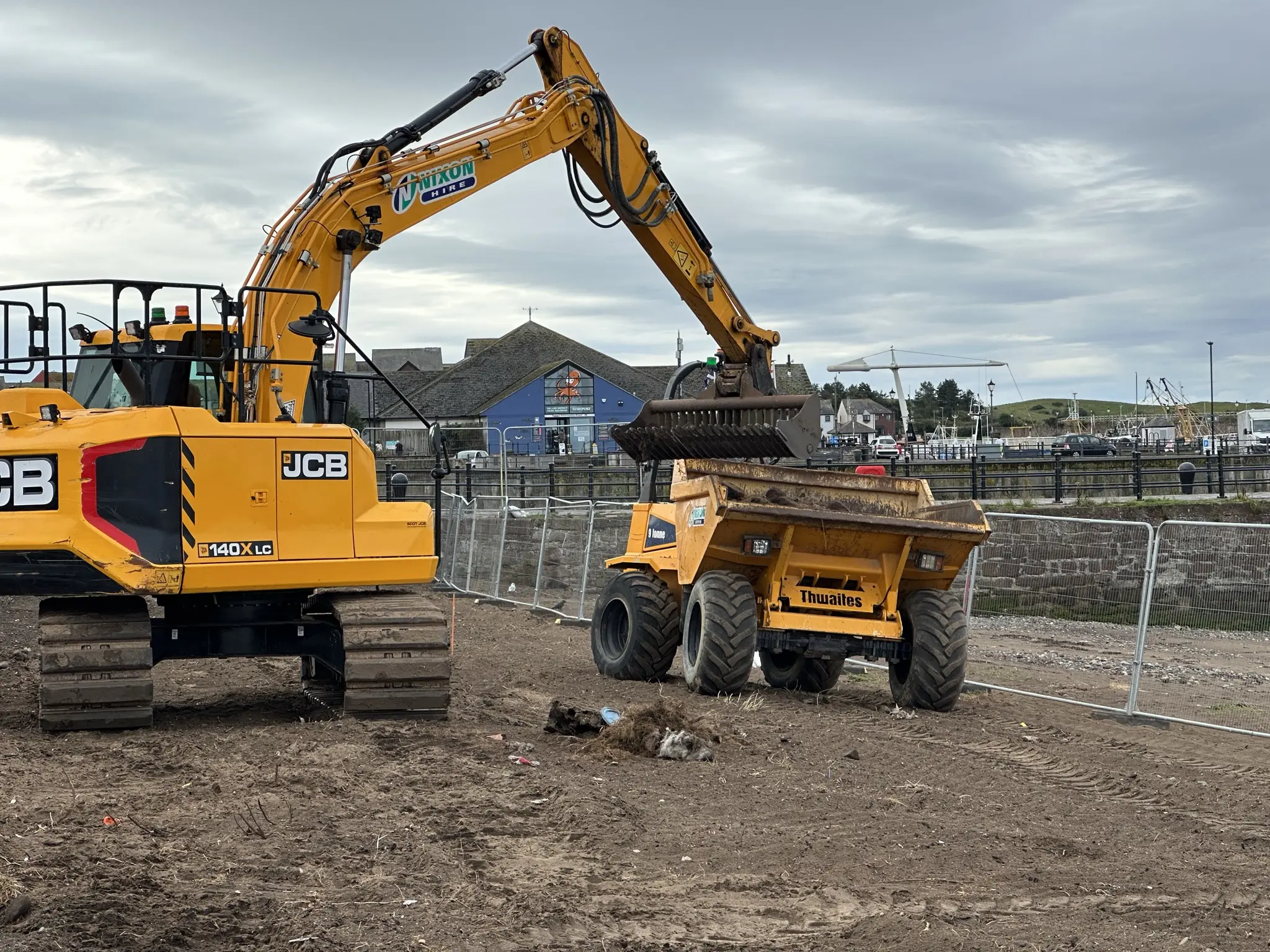

Excavator and dumper working on the Maryport Boardwalk earthworks beside the harbour
Earthworks, changing beach-head levels and plant movements were sequenced within the wider harbour and public-realm setting.

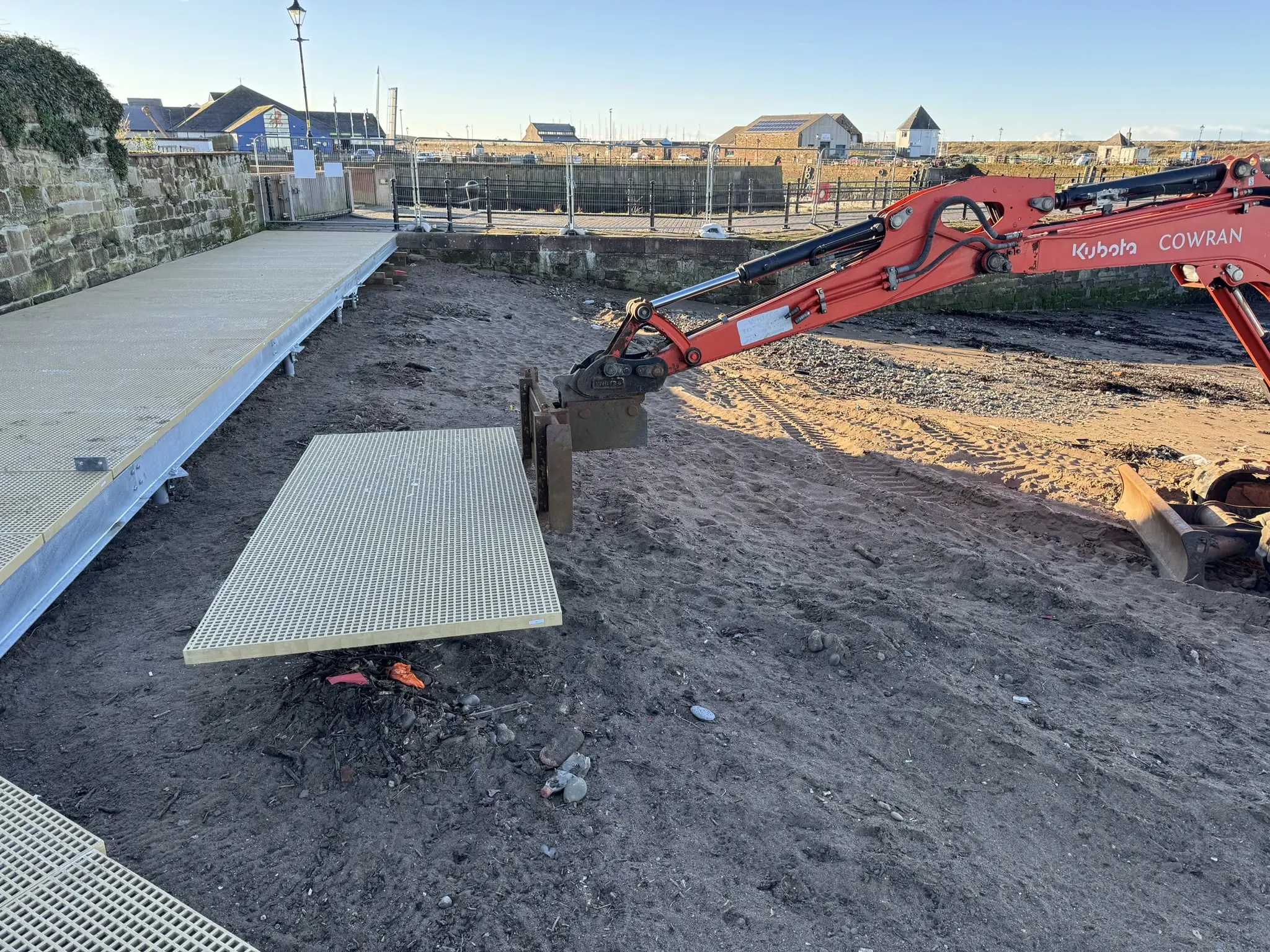

Custom non-slip GRP panels being installed on the Maryport Boardwalk
Custom non-slip GRP panels were checked for fit and tolerance before being installed across the steel structure.
Cowran Estate Services excavator and team working at night on Maryport Boardwalk
Night working formed part of the controlled delivery sequence through the winter construction period.

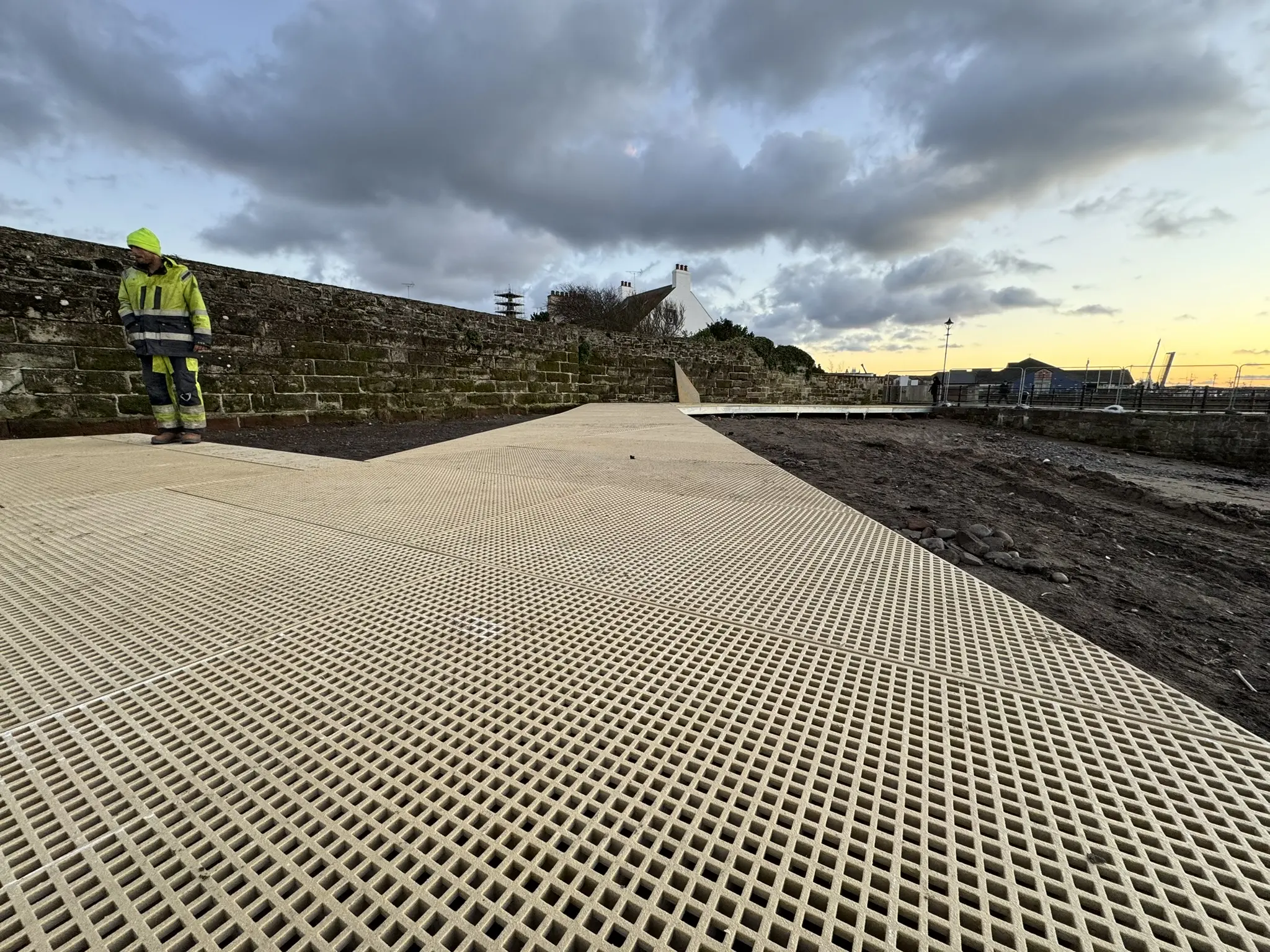

Finished Maryport Boardwalk decking and public route beside the harbour wall
The finished deck provides a durable, non-slip public route between the harbour wall, Lal Beach and the promenade.

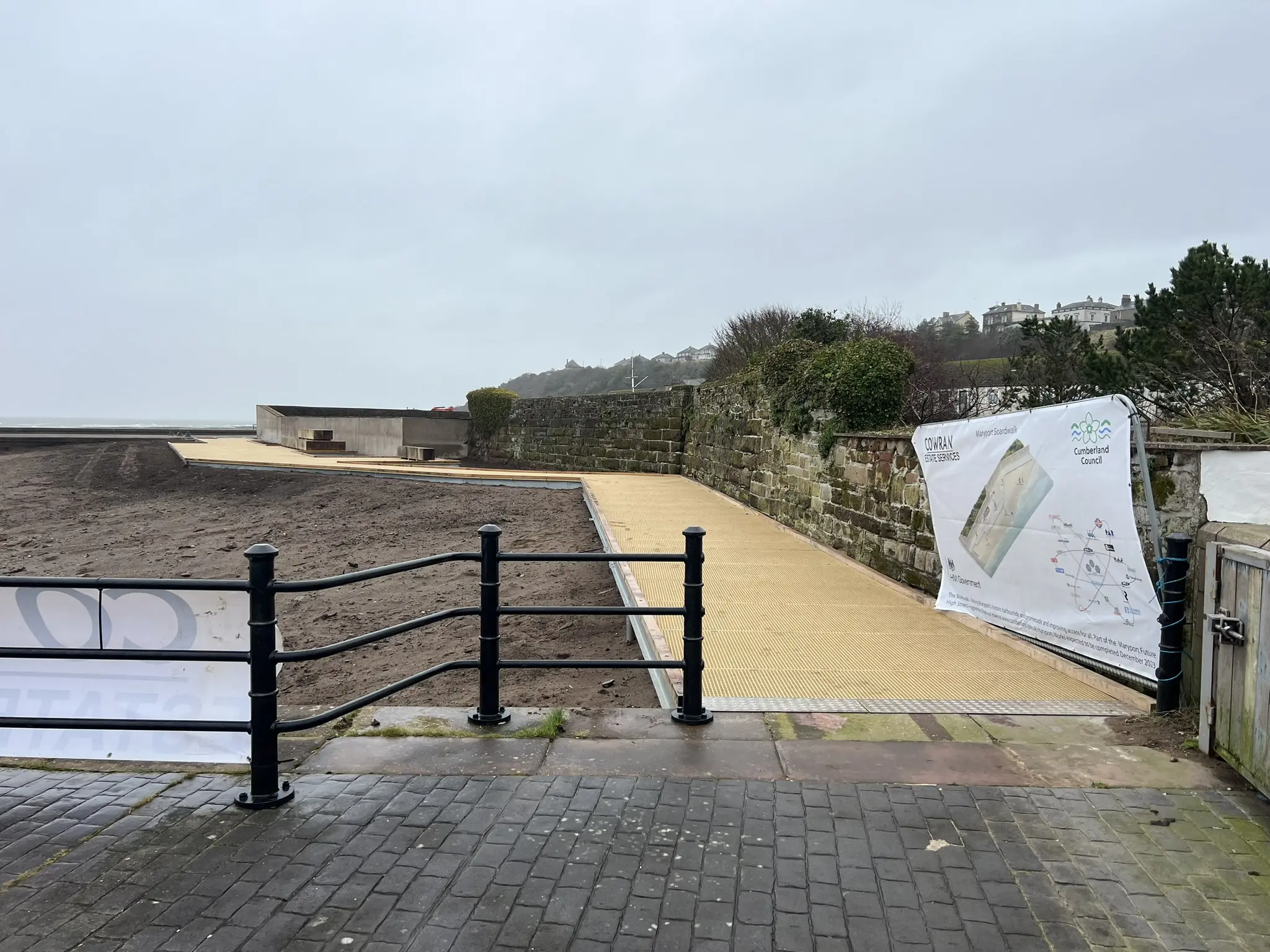

Completed Maryport Boardwalk entrance linking the harbour wall and promenade across the coastal site
The completed entrance makes the boardwalk a continuous public route between the harbour wall, Lal Beach and the promenade.

Inside the delivery

Technical evidence, not decoration.

Selected project records show how Cowran's teams understood, controlled and delivered the work on the ground. Each extract is screened for attribution, privacy and public-release suitability.

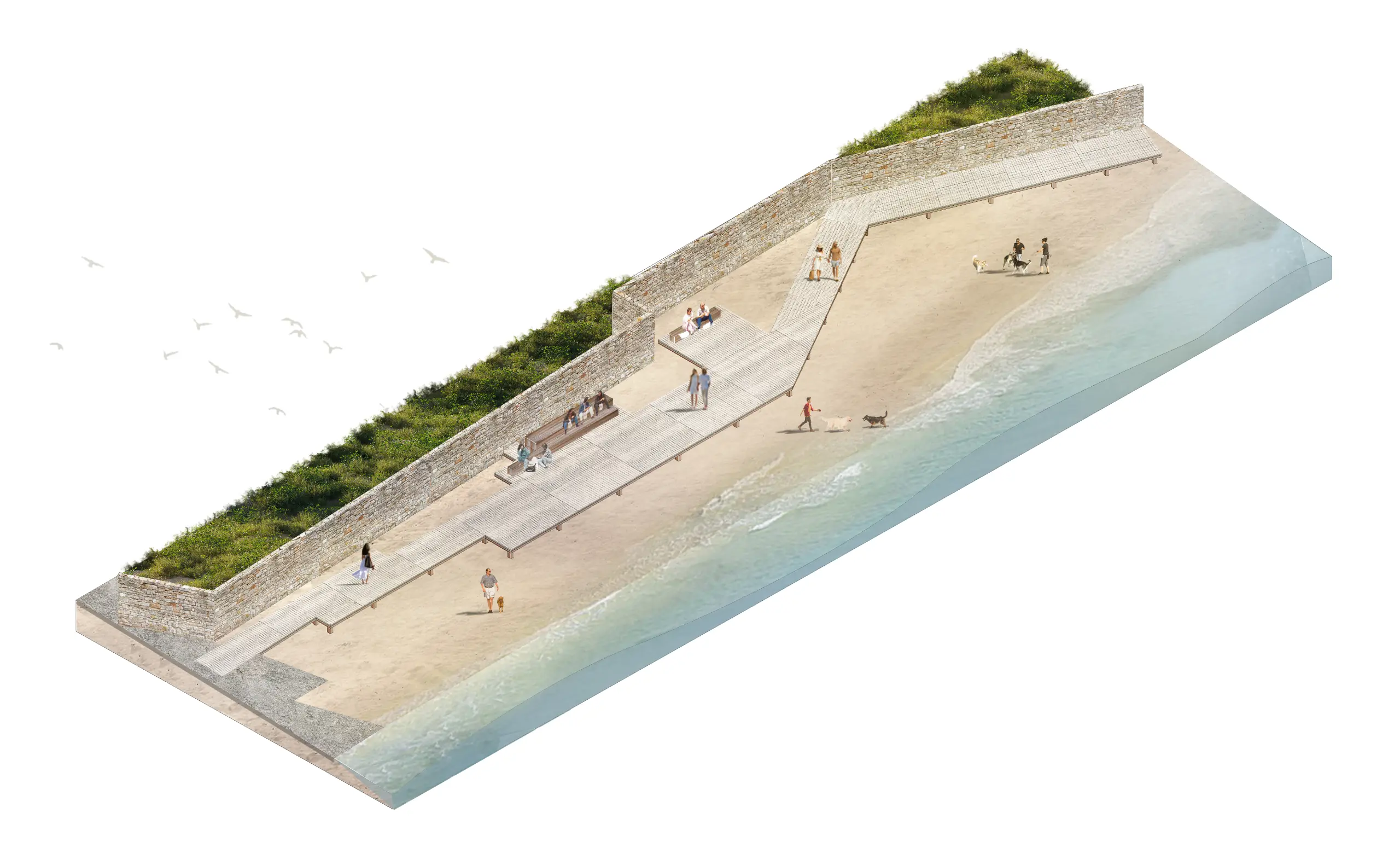

Rendered project visual showing the complete Maryport Boardwalk route, seating areas, harbour wall, Lal Beach and relationship with the shorelineOpen full drawing
Project visualisation

The complete coastal route, before construction.

The project visual resolves the boardwalk as one continuous accessible route, with changes in alignment and seating integrated between the harbour wall, beach and promenade.

Cowran Estate Services project record · Maryport Boardwalk route visualisation

Capabilities demonstrated

Coastal structures. Principal contracting. Deep foundations. Public realm.

Coastal structuresPrincipal contractingDeep foundationsPublic realm
